Laundry tag(EU/FCC/CHN)--7010 Laundry tag(EU/FCC/CHN)--7010

Type Number:10-Laundry7010
Textile or Off Metal applications.
Frequency options:FCC / ETSI / CHN.
More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.
It can be fixed by sewing.

Quantity:
Share this:
  • Product Description

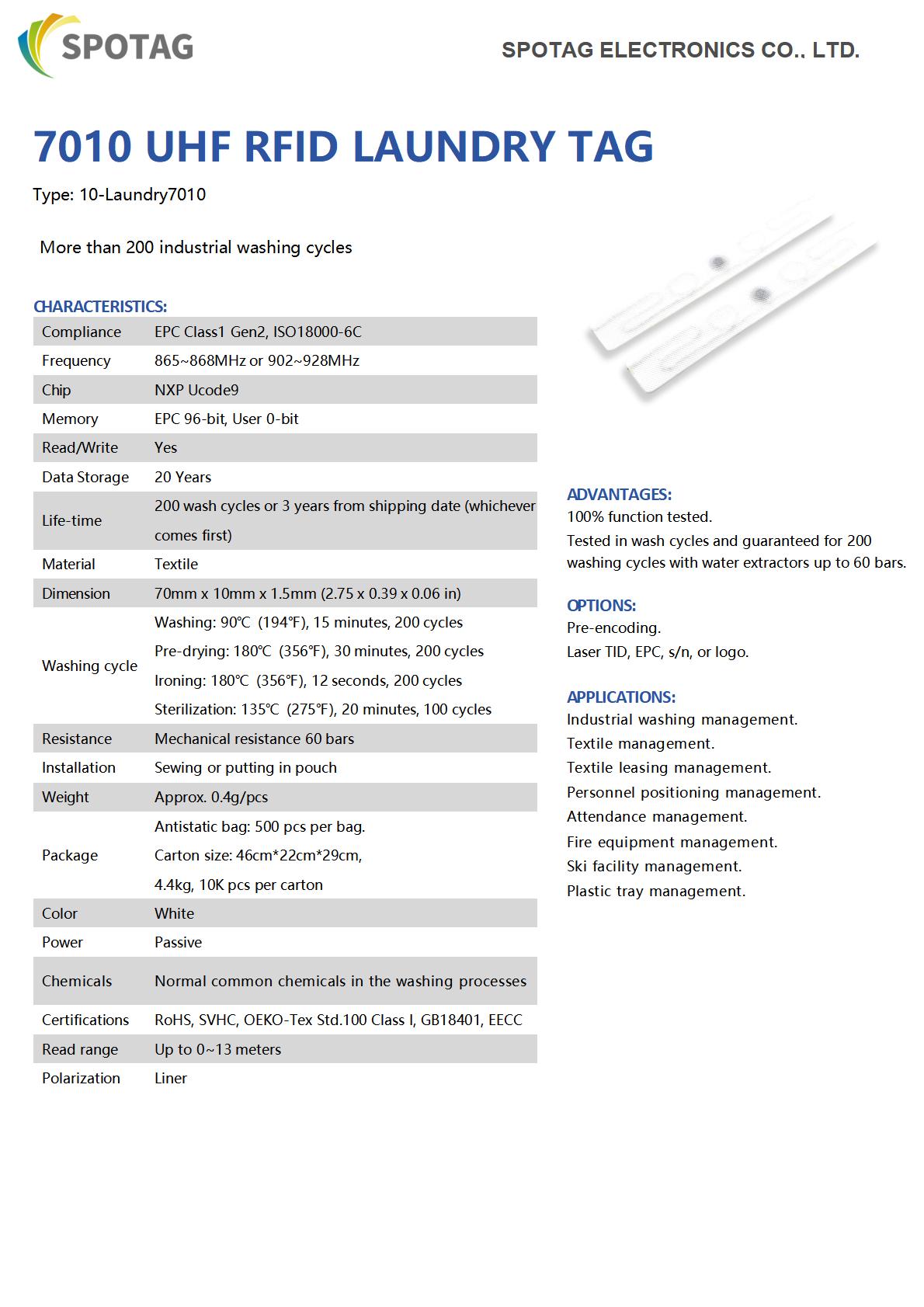

7010 TEXTILE LAUNDRY TAG


UHF Textile Laundry Tag, with more than 200 industrial washing cycle times,  stable and reliable RF performace

Type:10-Laundry7010

Assembly method: sewing



ADVANTAGES:


         More than 200 wash cycles.

         Both material and design have been tested for reliability.

         100% function tested.


MAIN FEATURES:


         Can customize size for customers.

         High temperature resistant material.

         Can be lasered with barcode.

         Resistant to waterproof.





APPLICATIONS:



         Industrial washing.

         Management of  uniforms.

         Medical apparel management.

         Military clothing management.

         Personnel patrol management.



CHARACTERISTICS:



Compliance

EPC Class1 Gen2, ISO18000-6C

Frequency

865~868MHz, or 902~928MHz

Chip

Impinj R6P

Memory

EPC 96bits,User 32bits

Read/write

Yes

Data Storage

20 years

Lifetime

200 wash cycles or 2 years from shipping date (whichever comes first)

Material

Textile

Dimension

LxWxH: 70 x 10 x 1.5mm / 2.756 x 0.398 x 0.059 inch

Storage Temperature

-40℃~ +85 ℃

Operating Temperature

1) Washing: 90℃(194οF), 15 minutes, 200 cysle

2) Pre-drying in Tumbler: 180℃(320οF), 30minutes

3) Ironer: 180℃(356οF), 10 seconds, 200 cycles

4) Sterilization Process: 135℃(275οF), 20 minutes

Mechanical Resistance

Up to 60 bars

Delivery format

Single

Installation Method

Thread installation

Weight

~ 0.6g

Package

Antistatic bag and carton

Color

White

Power Supply

Passive

Chemicals

Normal common chemicals in the washing processes

RoHS

Compatible

Read distance

Up to 5.5 meters (ERP=2W)

Up to 2 meters ( With ATID AT880 handheld reader)

Polarization

Liner


* During sewing installation, the stitching should not damage the metal wire and chip module.

   * Different reading performance with different reading facilities.

* Hot installation, when the temperature is lower than 210℃ or the pressure is less than 0.6 Mpa, there will be a hidden trouble of bad hot stamping effect.



×
